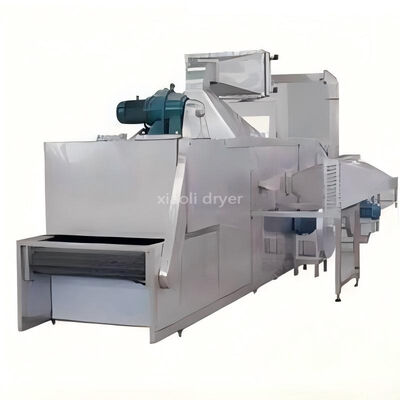

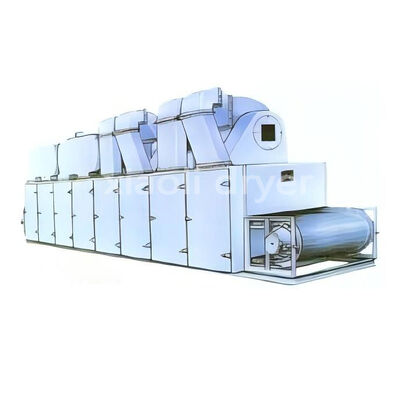

DW Series Single Layer Continuous Mesh Belt Dryer Industrial Drying Machine For Food Dehydration

DW-1.2-8 Single Layer Continuous Mesh Belt Dryer

The DW-1.2-8 Continuous Mesh Belt Dryer is an advanced industrial drying solution specifically engineered for food dehydration applications. Featuring a single layer belt with 1.2m width and 8m drying section, this machine ensures uniform airflow distribution and consistent drying results across the entire product bed with 9.6 m² effective drying area.

Key Features

• Continuous Operation: The conveyor belt system enables non-stop feeding and discharging, significantly improving production efficiency compared to batch dryers.
• Optimized Single Layer Design: Enhanced airflow penetration through the 1.2m wide single layer mesh belt ensures even heat distribution and rapid moisture removal.
• 4 Drying Units: Independent temperature and air speed control across each unit for precise drying profile customization.
• Flexible Heating Options: Compatible with steam heating (0.2-0.8 MPa, 150-300 kg/h steam consumption) or electric heating configurations.
• Adjustable Parameters: Belt speed adjustable for 0.2-1.2 h drying time, material thickness 10-80 mm, precise temperature and humidity control across all drying units.
• Energy Efficient: Optimized hot air circulation system with 11.4 kW total power consumption for cost-effective continuous operation.

Applications

Ideal for drying various food products including vegetables, fruits, herbs, meat jerky, pet food, seafood, and other dehydrated food products. Also suitable for pharmaceutical and chemical material dehydration.

DW-1.2-8 Advantages

• Large 9.6 m² drying area with 5-15 kg H₂O/m²·h drying intensity for high throughput
• Multi-unit independent control adapts to different drying stages
• Modular design allows easy capacity expansion
• Low maintenance with accessible components and quick belt replacement
• Uniform drying quality with minimal product damage
• Proven reliability in continuous food dehydration applications worldwide

Technical Specifications

Contact us today for a customized quotation based on your specific production requirements.
