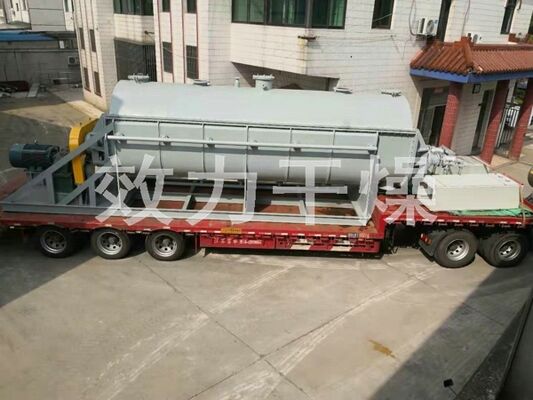

Horizontal Stirring Heat Conduction Type Paddle Dryer / Drying Equipment
Product Description:
Our Horizontal Stirring Heat Conduction Type Paddle Dryer is a high-performance agitation drying solution designed for the continuous processing of paste, granular, powder, and slurry materials. Unlike traditional hot air dryers, this equipment utilizes indirect conduction heating, ensuring that thermal energy is transferred directly to the material via hollow shafts and wedge-shaped blades.
By eliminating the need for large volumes of carrier air, this drying equipment maximizes energy efficiency and process stability, making it an essential asset for industries requiring precise thermal control and low operational costs.
Technical Specifications
| project | KJG95 |
| model | |
| heat transfer area(m2) | 95 |
| Effective volume(m3) | 8.07 |
| Speed range(rmp) | 5-15 |
| power(kw) | 75 |
| Container width A(mm) | 2032 |
| Total width B(mm) | 2438 |
| Container width C(mm) | 6124 |
| Total length D(mm) | 9704 |
| Inlet/outlet distance E(mm) | 5664 |
| Center High F(mm) | 1220 |
| Total height H(mm) | 2566 |
| Inlet N(inch) | 11/2 |
| Outlet O(inch) | 11/2 |
High Thermal Efficiency (Conduction Type): As a conductive dryer, it minimizes heat loss through air. For slurry materials, it achieves a remarkable consumption ratio where only 1.2 kg of steam is required to evaporate 1 kg of water.
Wedge-Shaped Self-Cleaning Blades: The unique design of the stirring paddles creates a "compression-expansion" effect, ensuring the heat transfer surface is constantly "washed" by the material, preventing buildup and maintaining peak efficiency.
Horizontal Dual-Shaft Agitation: The horizontal structure with dual or quad-shafts ensures that materials move in a "piston flow" along the axial direction, providing uniform temperature and humidity throughout the batch.
Compact Footprint: The large heat transfer area per unit effective volume allows for a shorter processing time and a significantly smaller installation space compared to other drying equipment.
Wide Temperature Adaptability: The system supports heat media (steam, hot water, or thermal oil) with temperatures ranging from -40°C to 320°C.
Installation structure diagram
Application Cases
| name | Jiangyin Farsun |
| Processing Equipment: | Paddle Dryer |
| Initial Moisture: | 70% |
| Final Moisture: | 25% |
| Processing Capacity: | 200 kg/h ~ 300 kg/h |
| Processing Equipment: | |
| Before processing | After processing |
|
|
FAQ
Q: What makes "Heat Conduction Type" better for environmental protection?
A: Since it uses indirect conduction, it requires very little air to carry away moisture. This leads to extremely low dust entrainment and simplifies the process of solvent recovery, significantly reducing environmental pollution.
Q: Can this equipment handle heat-sensitive materials?
A: Yes. The low-speed agitation and precise control over the heat medium temperature make it ideal for materials that are easily oxidized or sensitive to high heat.
Q: Is it suitable for viscous "glue-phase" materials?
A: Absolutely. The specialized compression-expansion stirring effect of the wedge-shaped blades is specifically engineered to handle the sticky phase of pastes and slurries without clogging.
